SPECIFICATIONS

Accessories Type: Leverless Controller,Joystick Arcades Hitbox

Brand Name: haute42

Compatible Brand/Model: PC

Electric: No

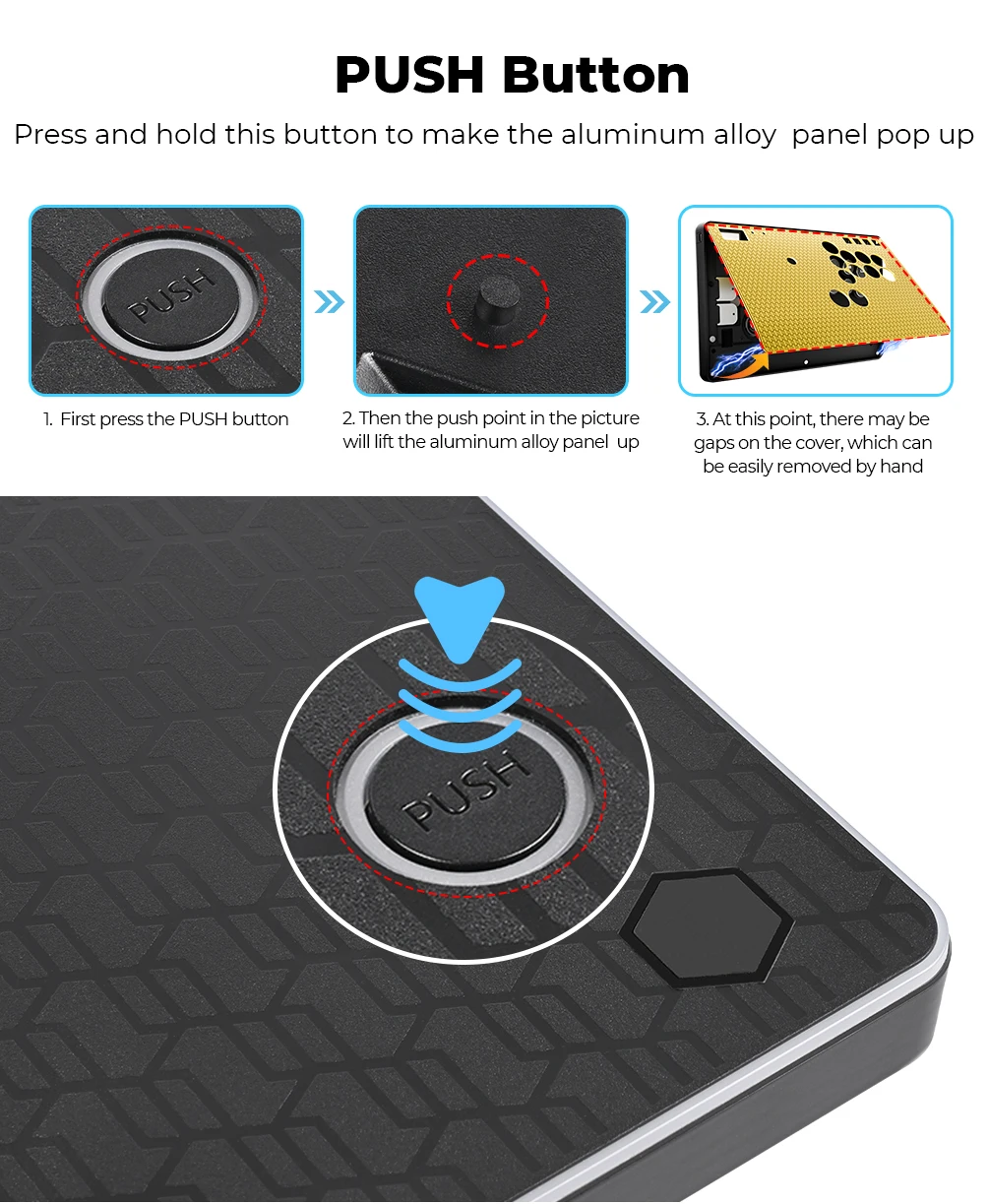

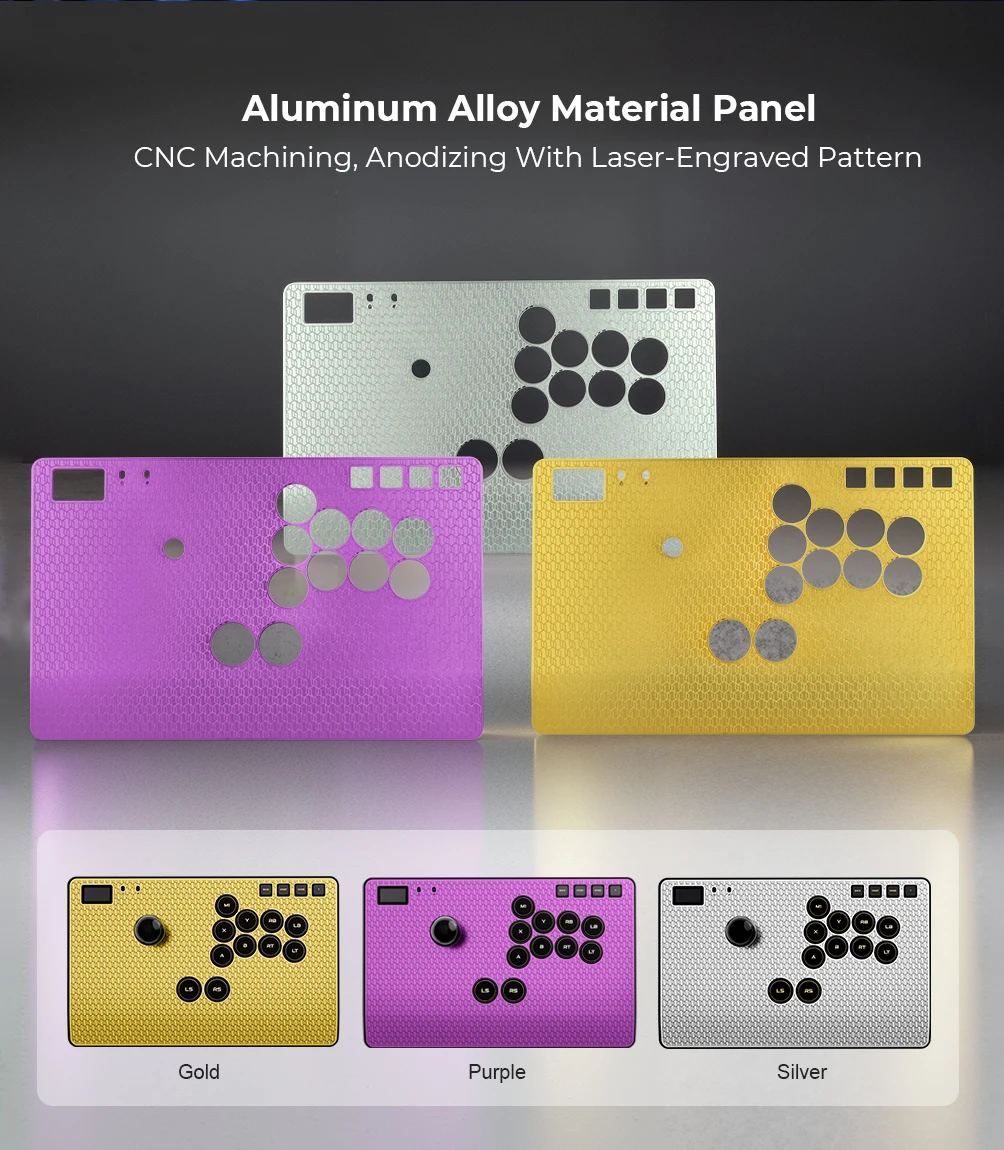

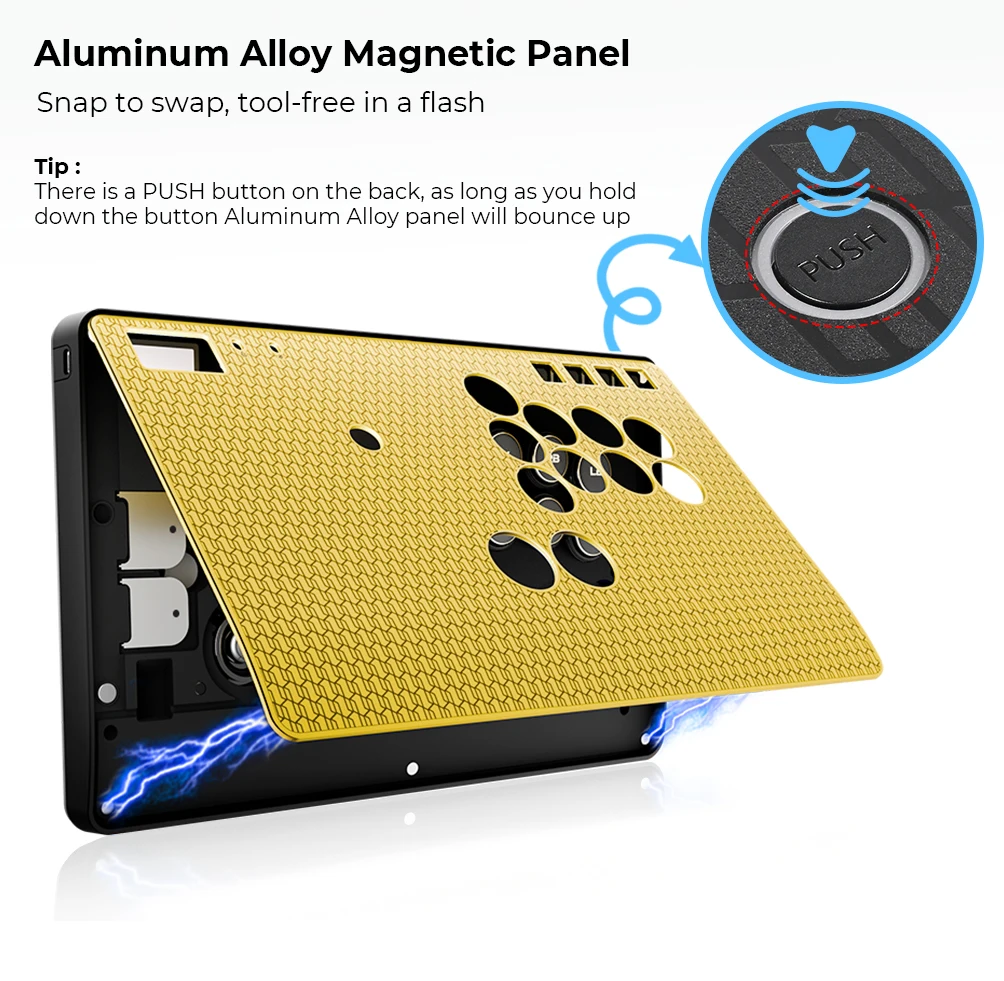

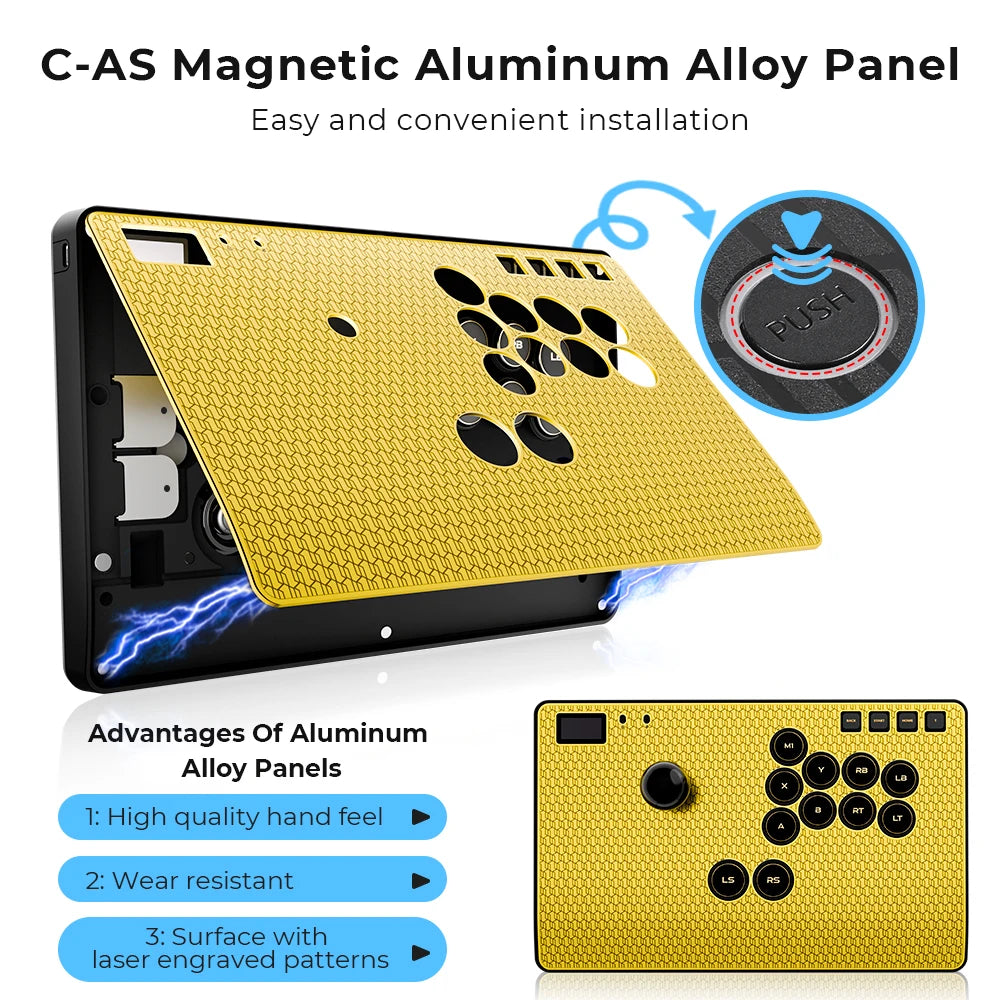

Feature: 11 button with RGB mode,Magnetic Aluminum Alloy Panel,with Joystick

High-concerned chemical: None

Hitbox Controller: Leverless Controller

Hitbox Fightstick: Arcade Fight Stick

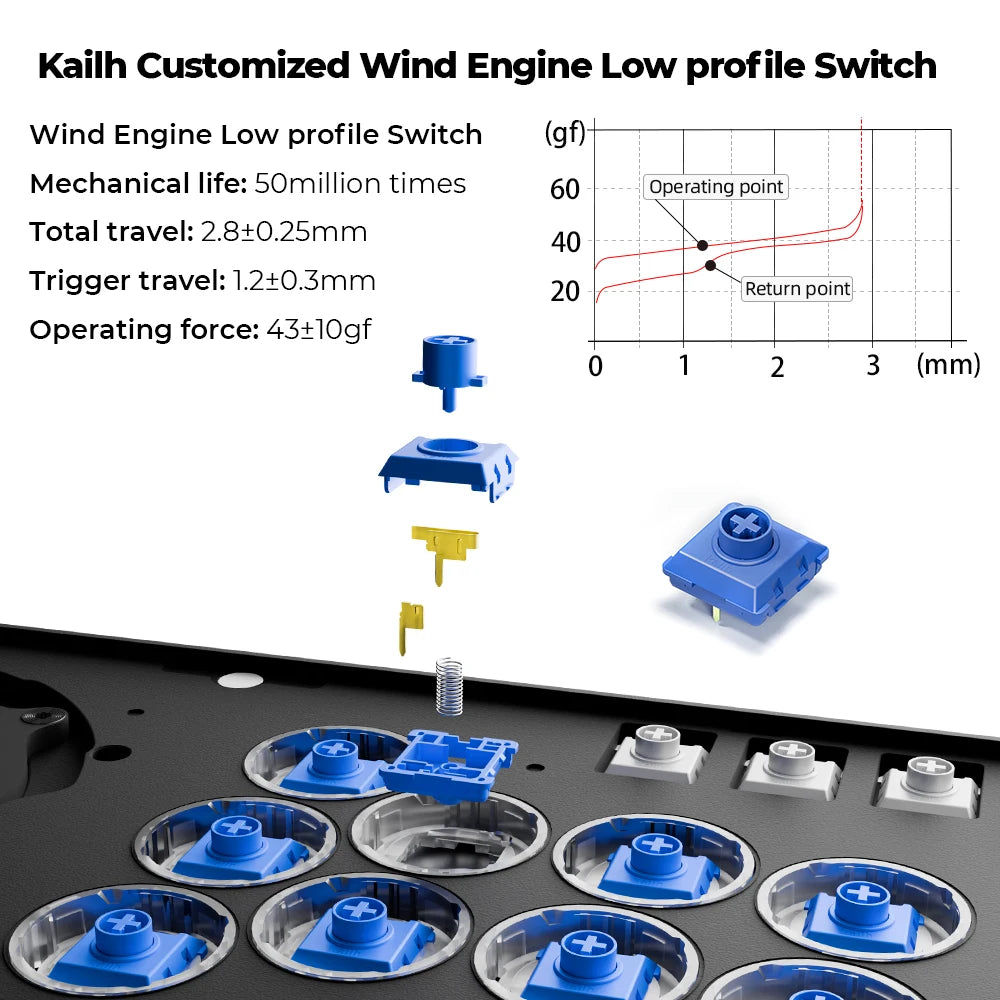

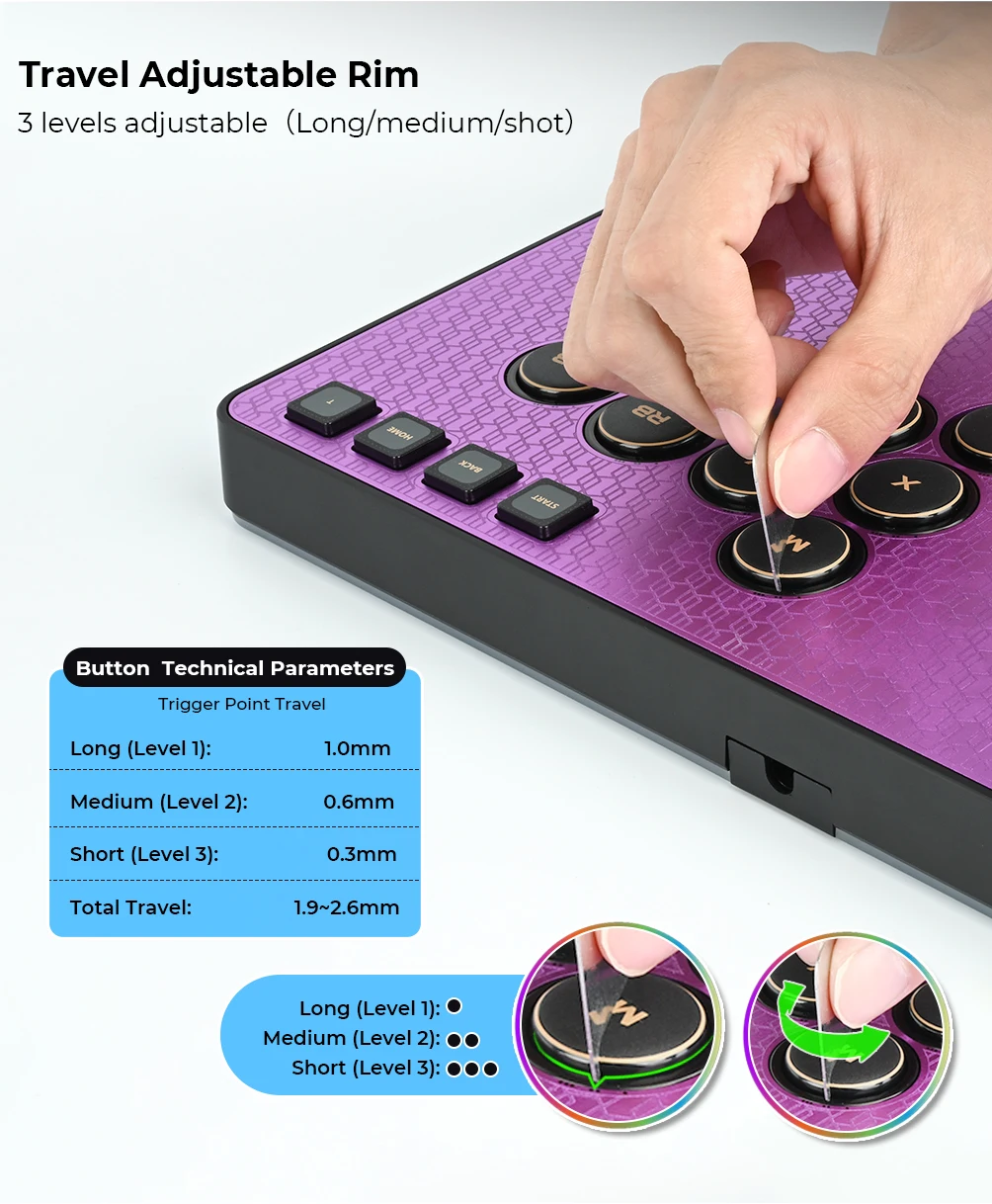

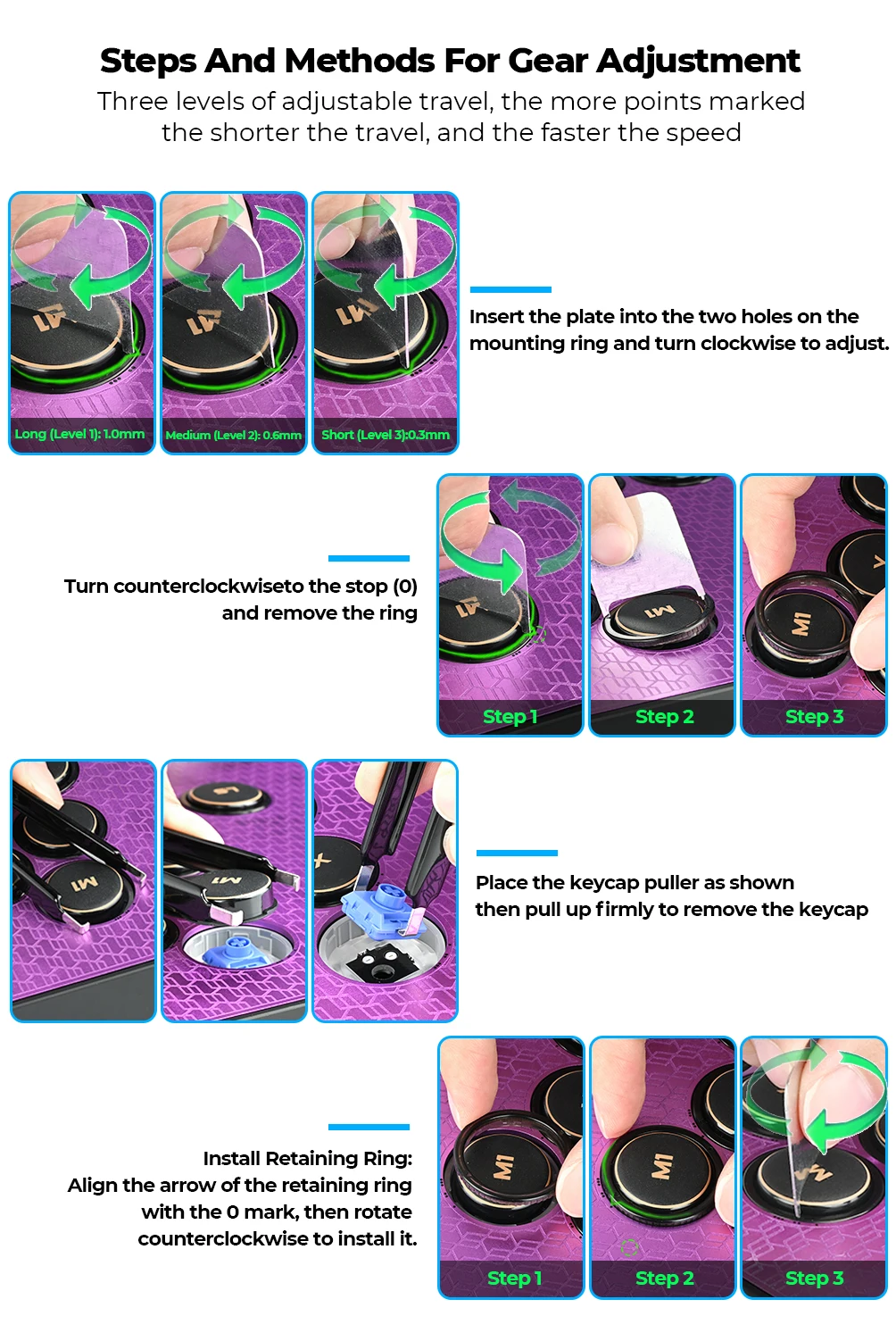

Key Features: Adjustable Travel(1-3 Gears)

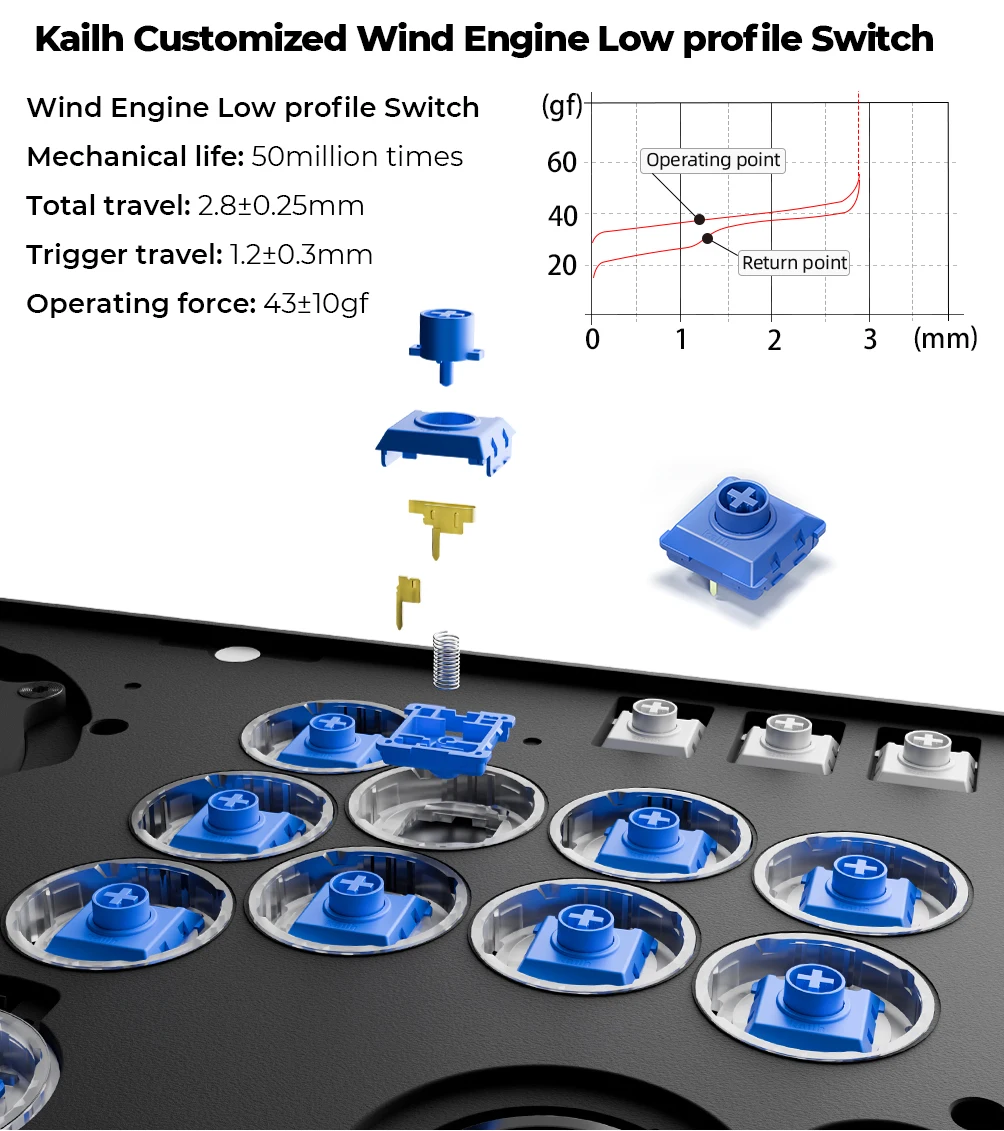

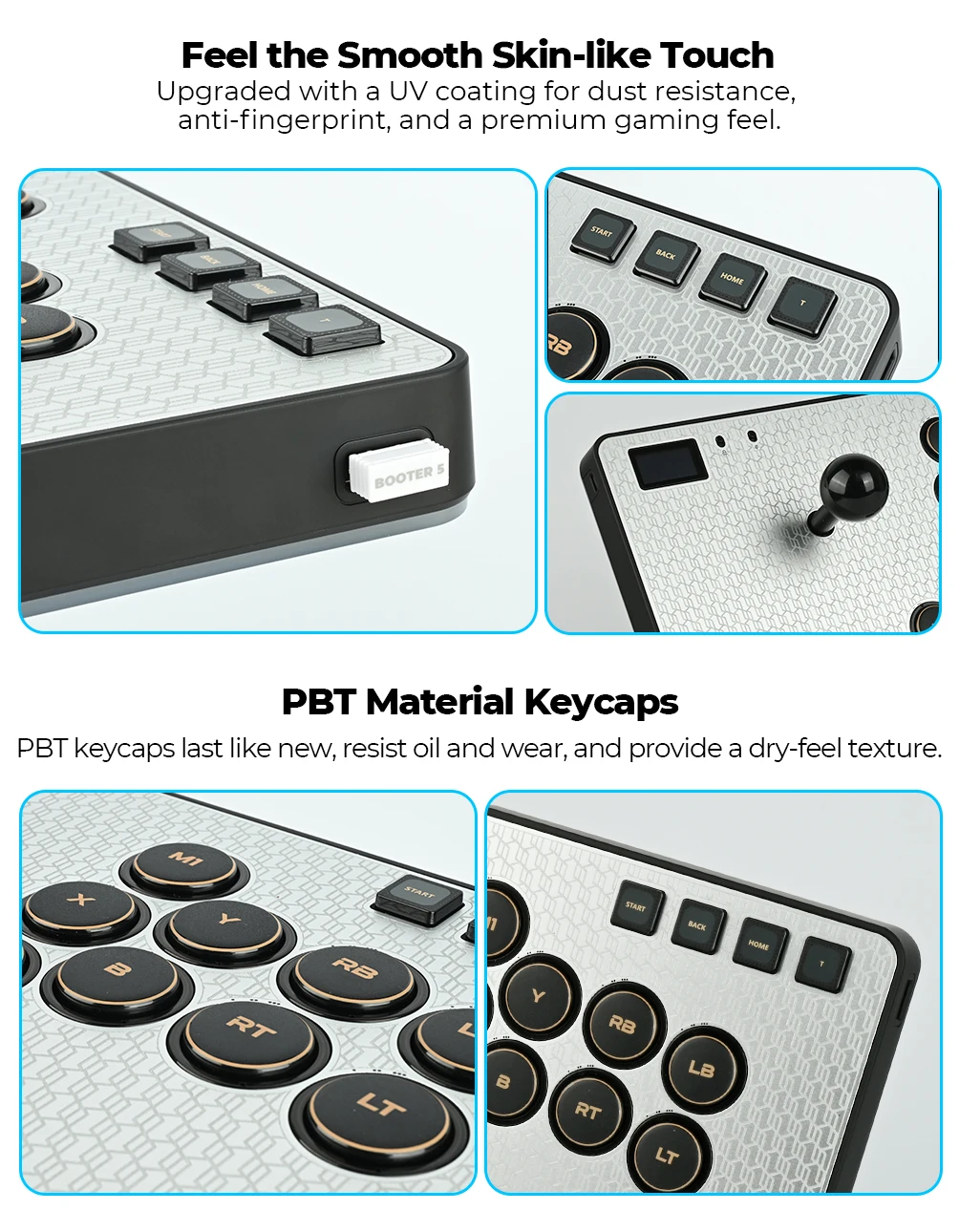

Keycap features: PBT Sublimation Printing

Model Number: C-AS

Origin: Mainland China

PC System: Windows 10

Supported platforms: For PC/PS4/PS5/Switch/Steam

With USB: YES

is_customized: NO

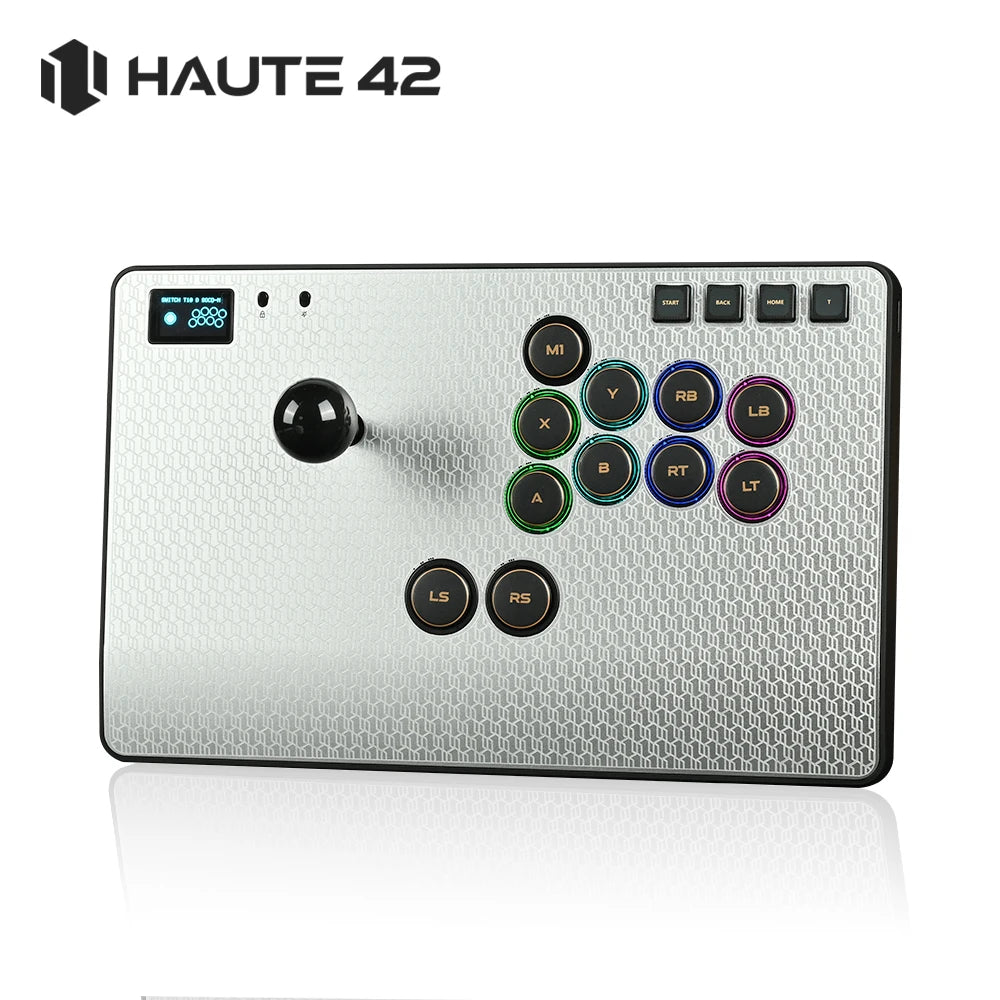

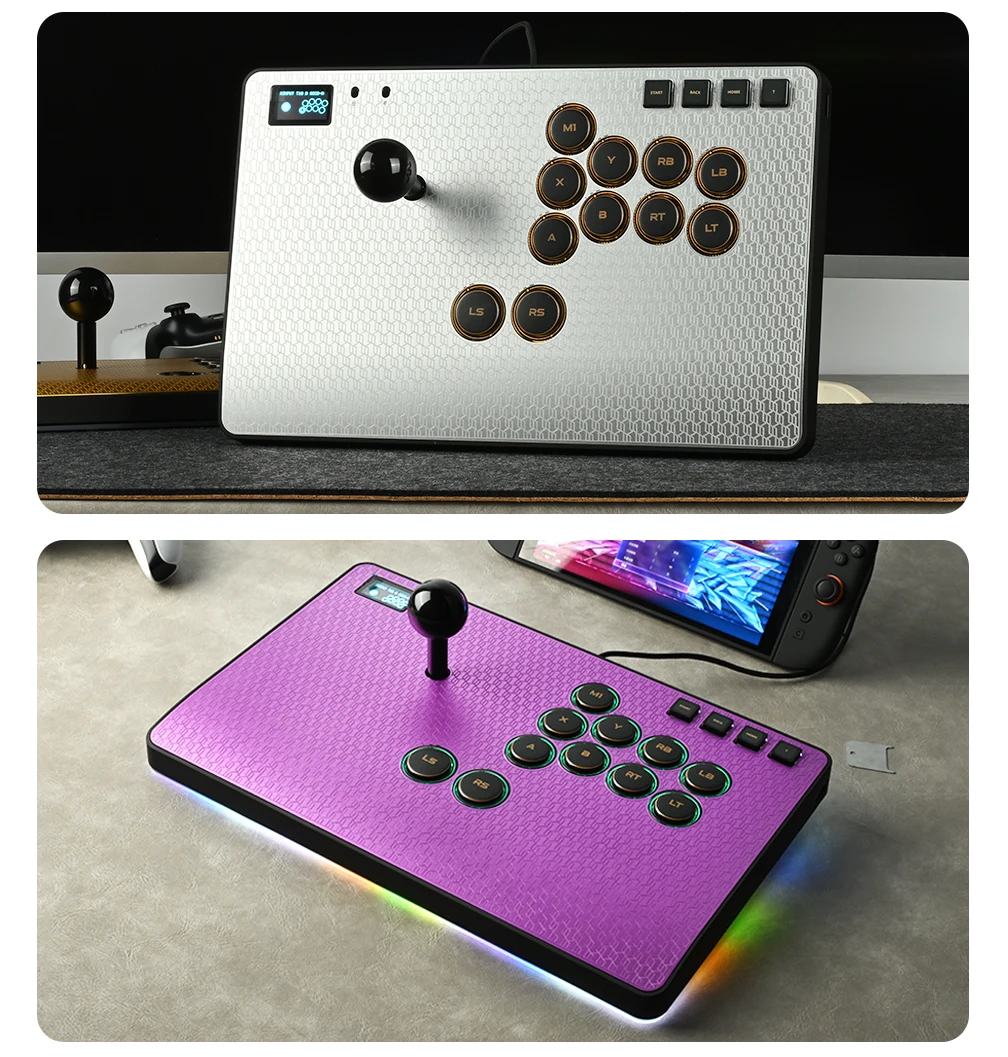

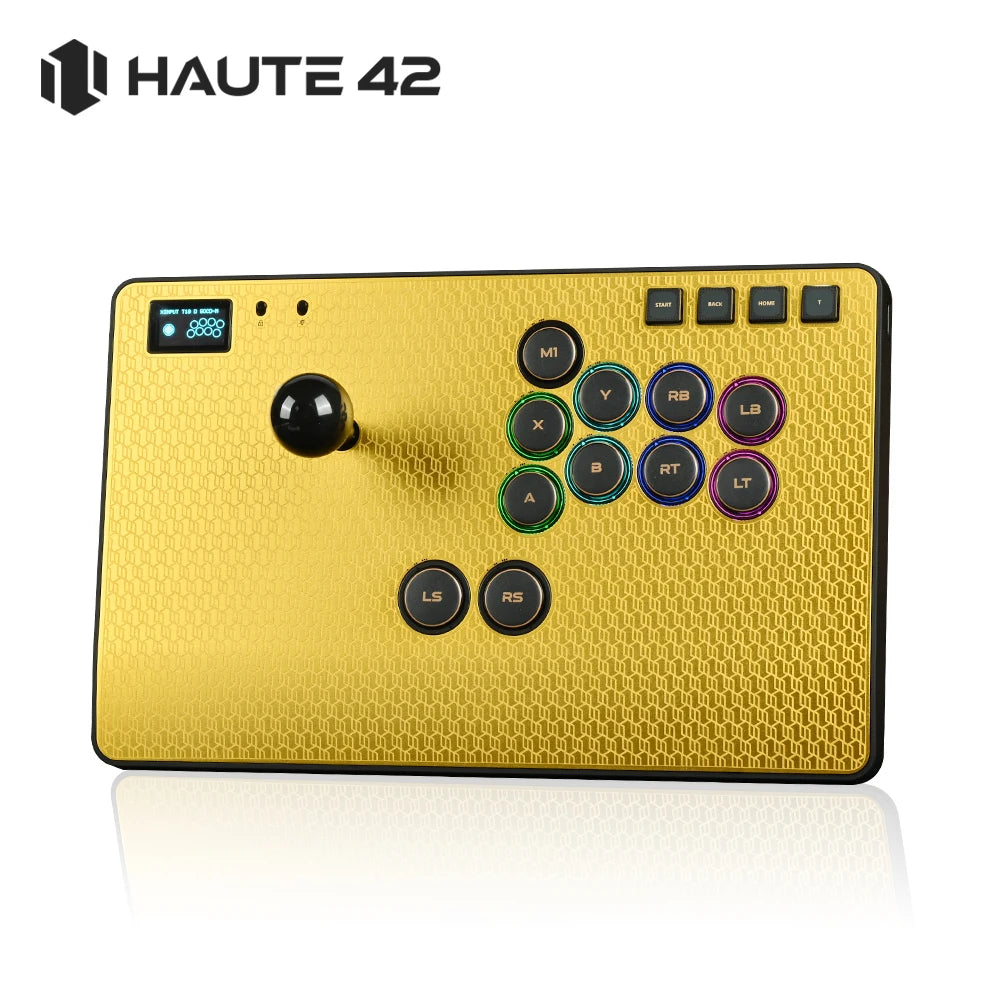

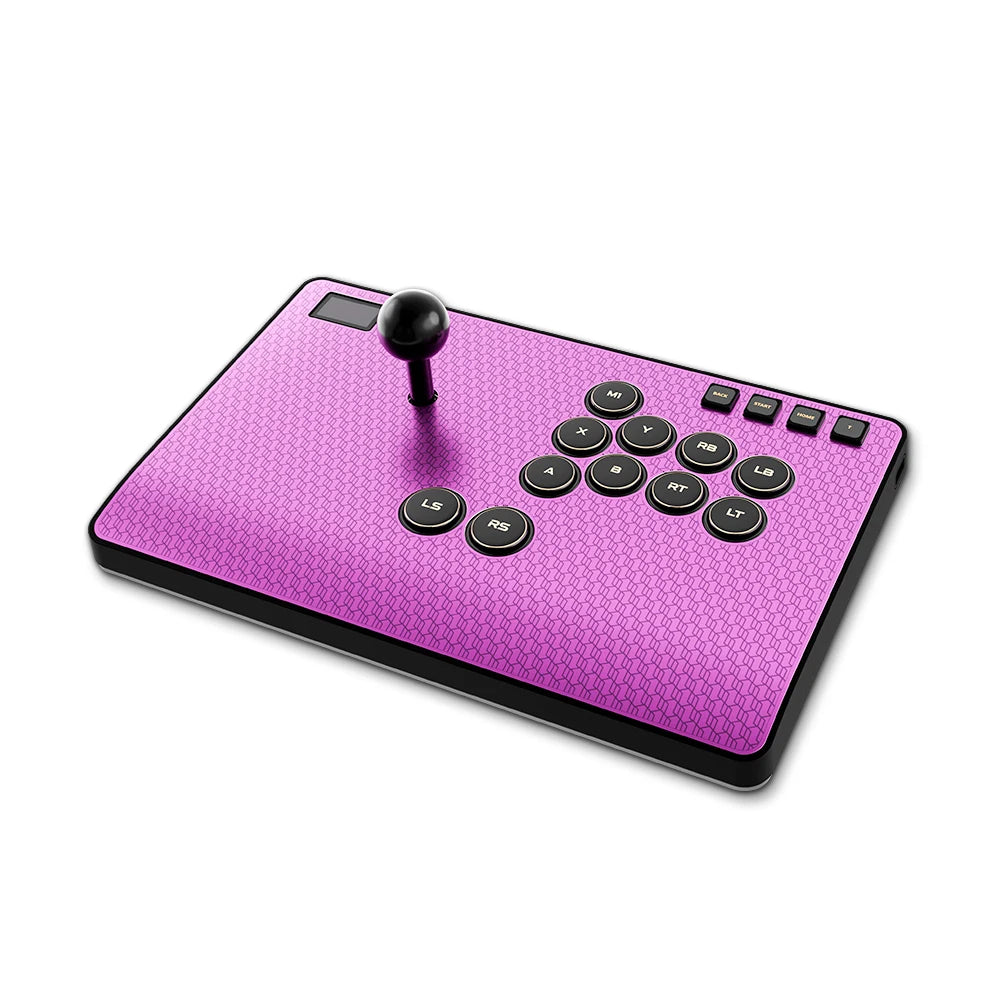

Haute42 C-AS Magnetic Aluminum Alloy Arcade Fight Stick Hitbox Controller For For PC/PS4/PS5 Joystick Arcade Hitbox FightStick

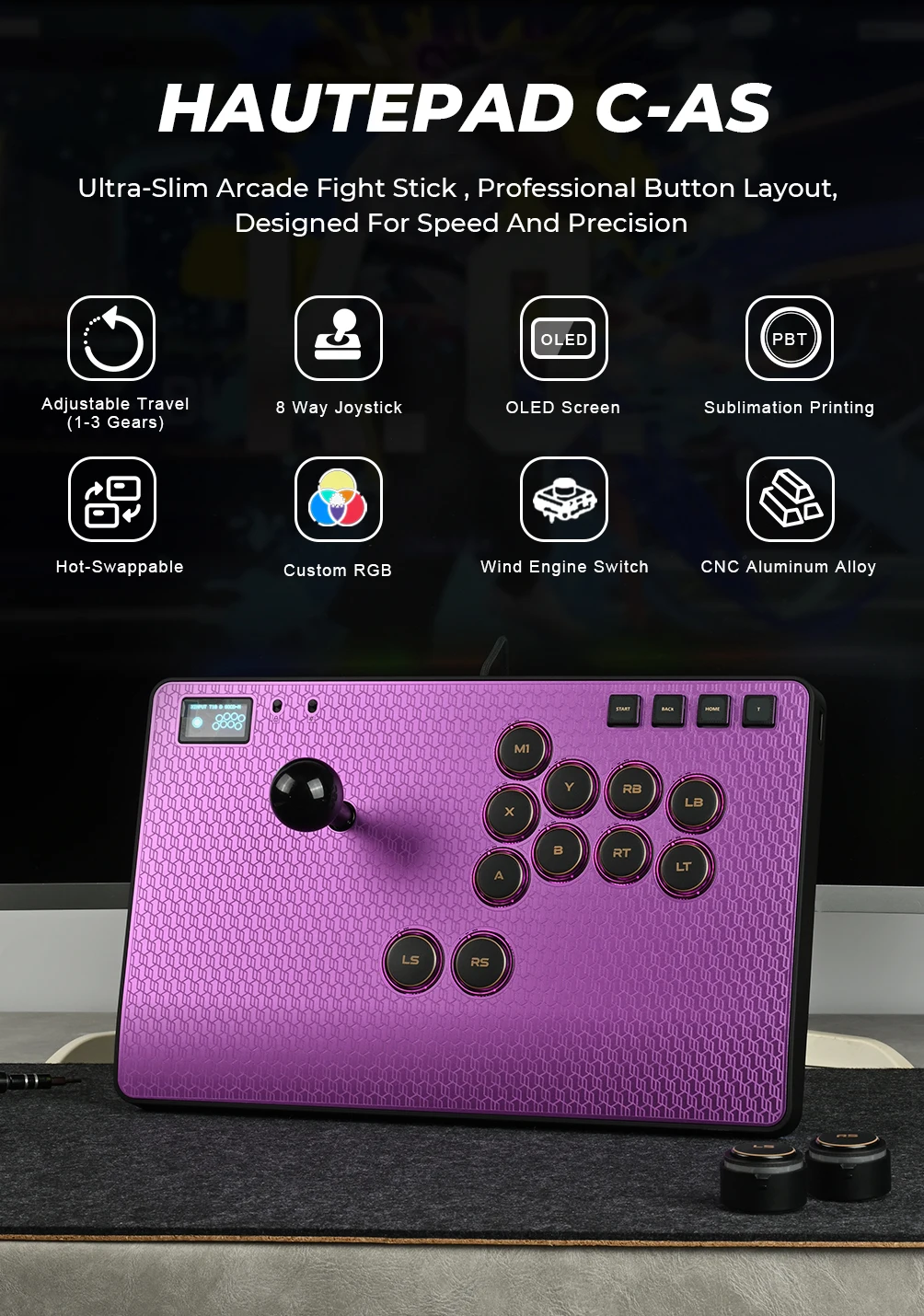

HautePad -C-AS

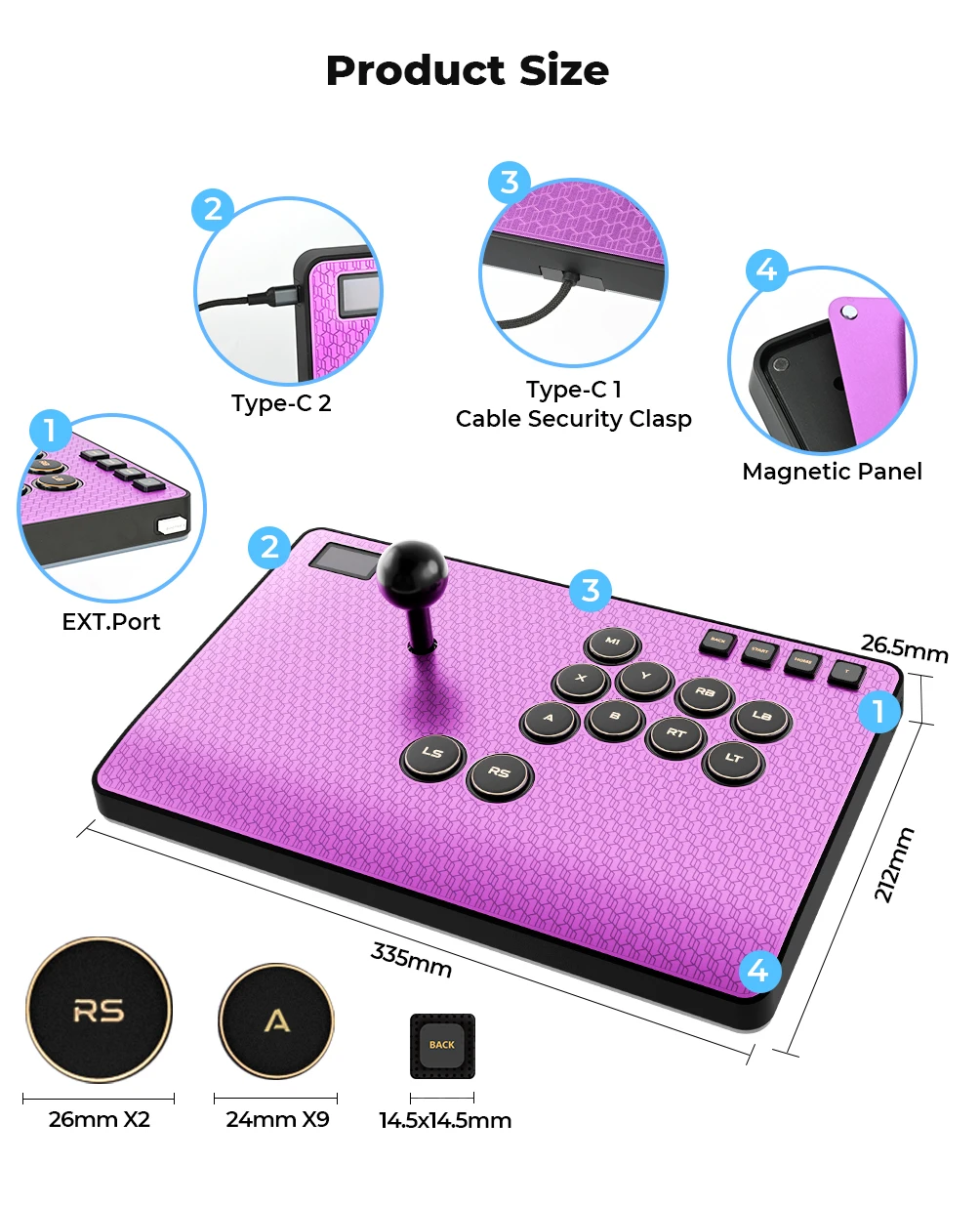

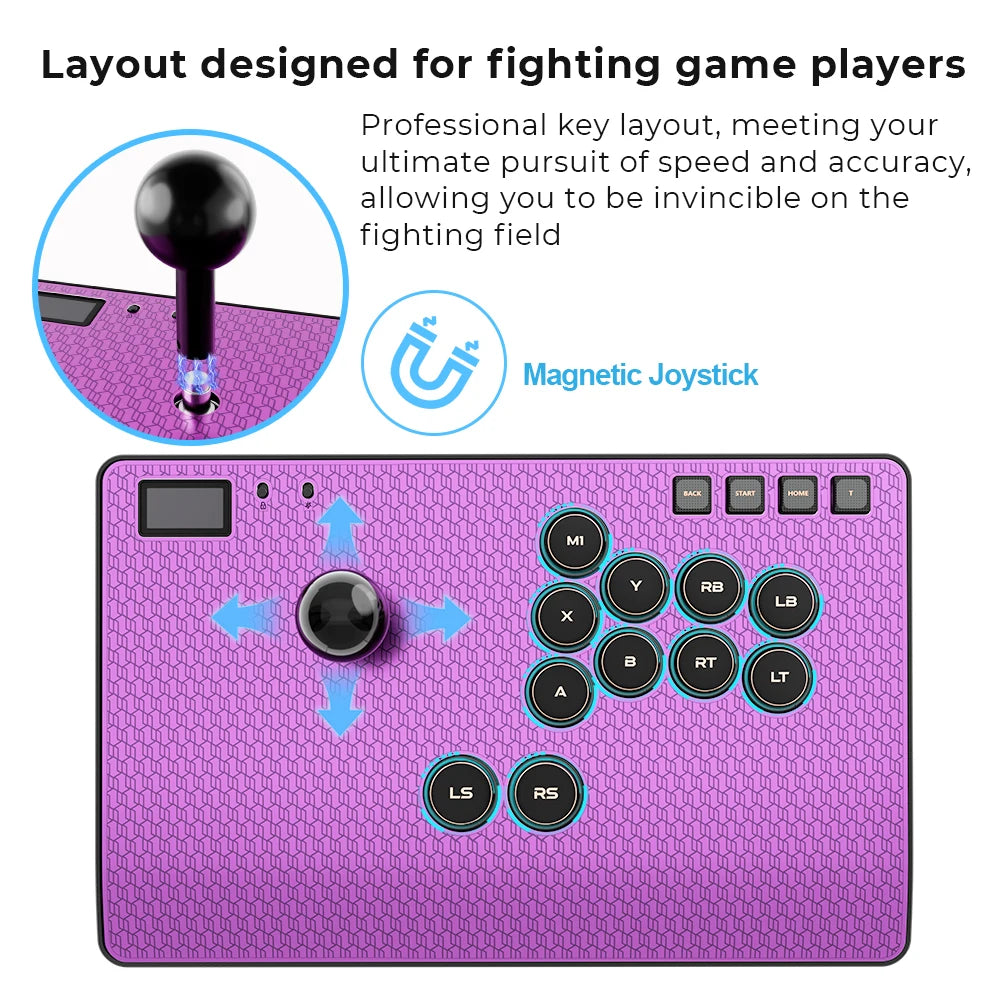

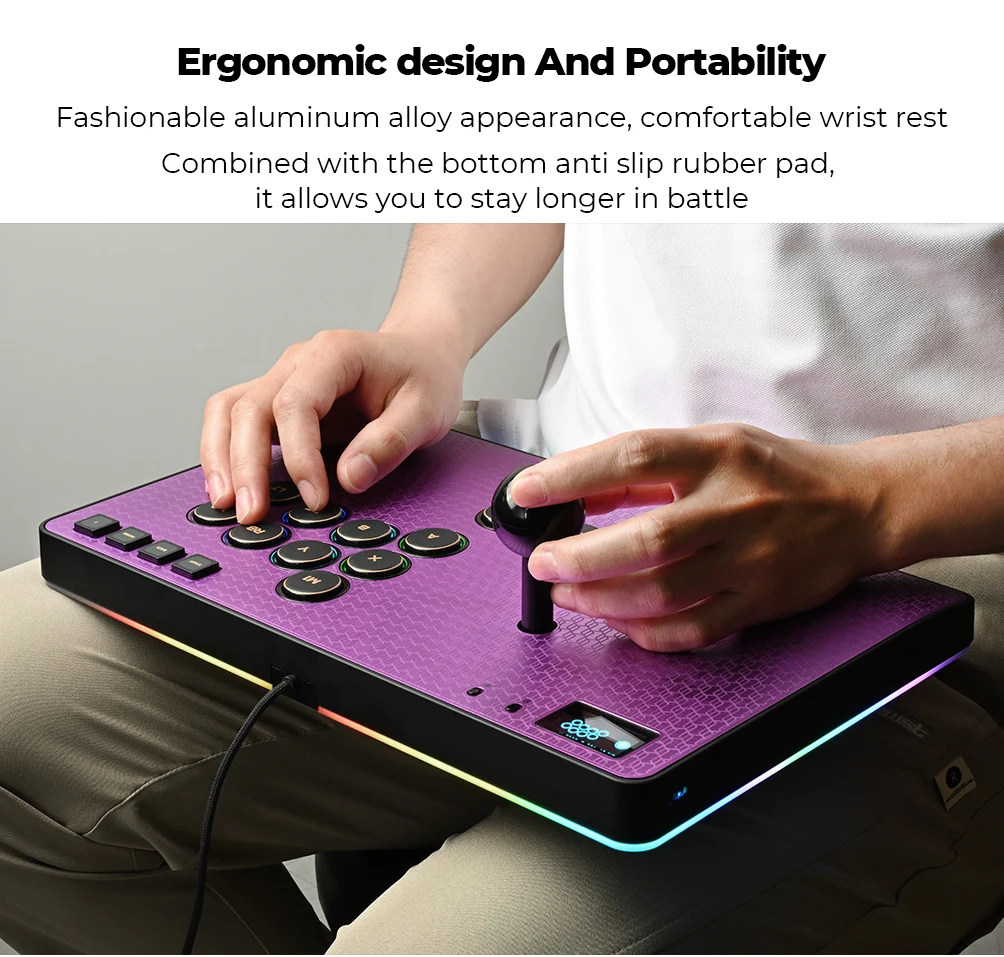

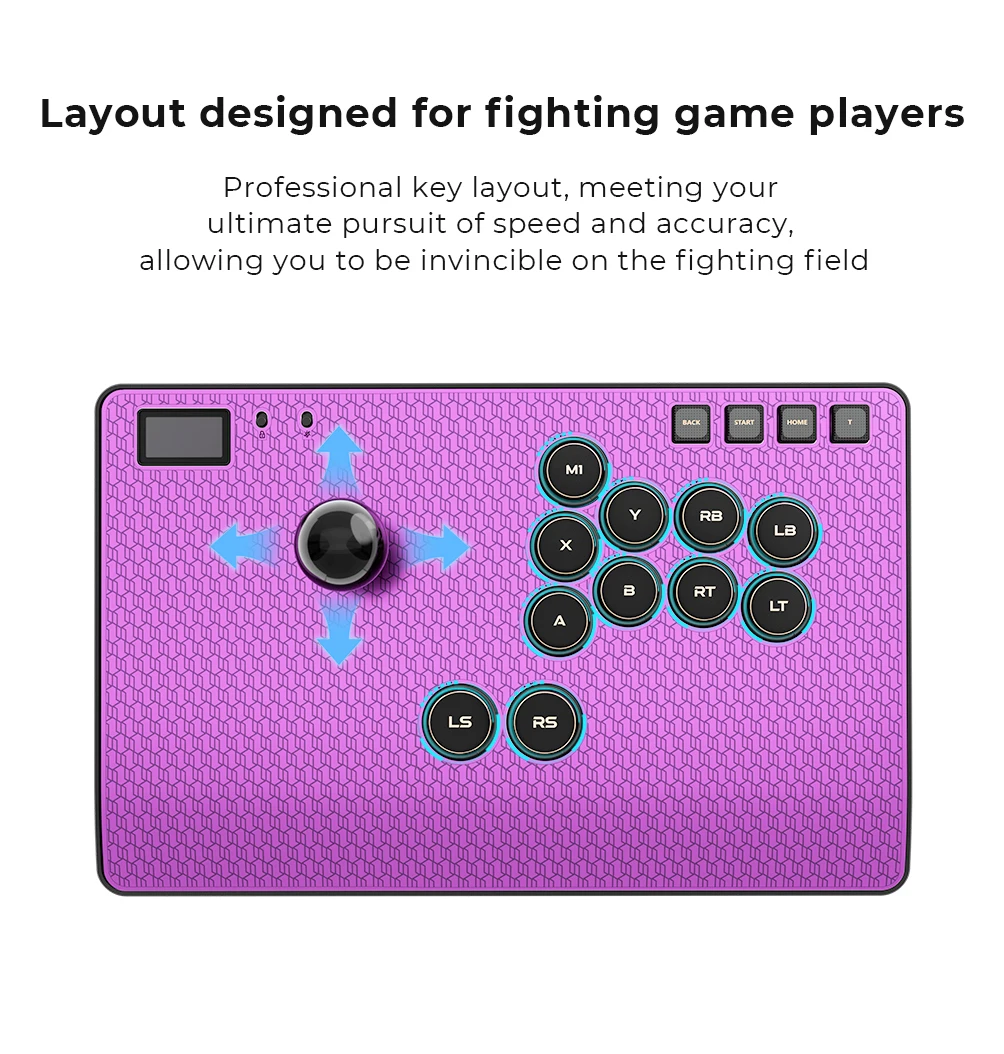

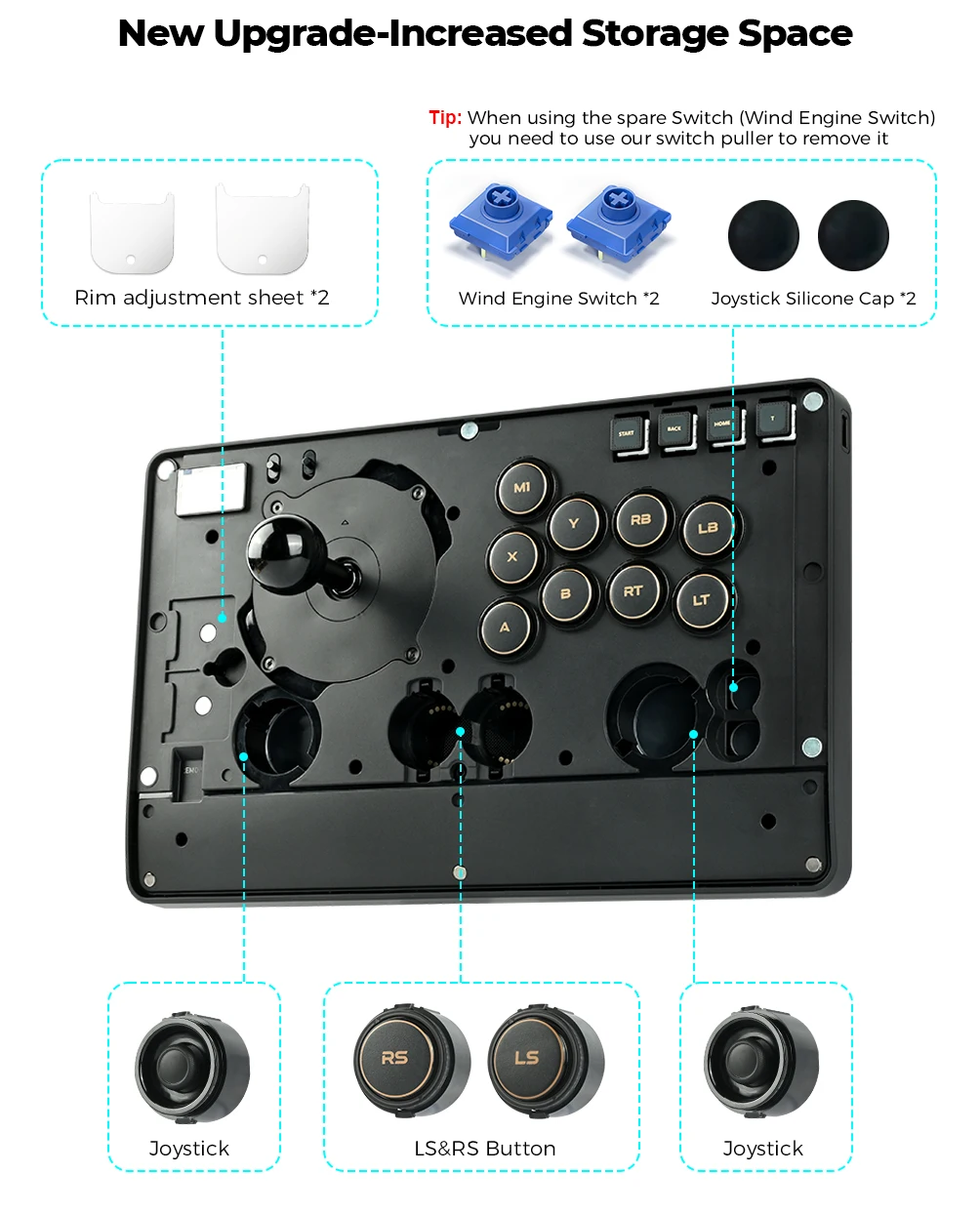

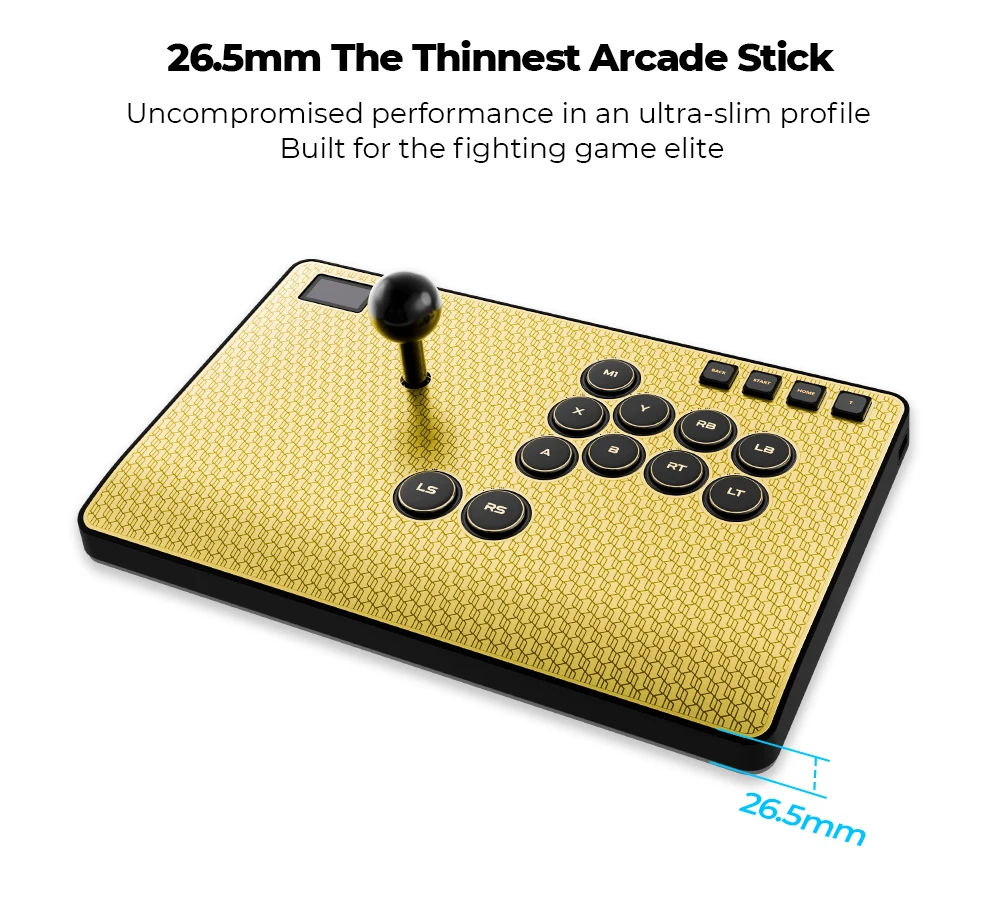

This is Haute42’s first Hitbox controller with a built-in joystick, featuring a layout specifically designed for fighting game players. It includes all the functions of the C-AT, with standout features such as a magnetic aluminum alloy top panel and adjustable key travel. Newly added is a storage-friendly design, making it the thinnest arcade-style Hitbox controller on the market — only 26.5mm thick and weighing 2.1kg for easy portability. It’s the perfect fighting game controller to meet all your needs.

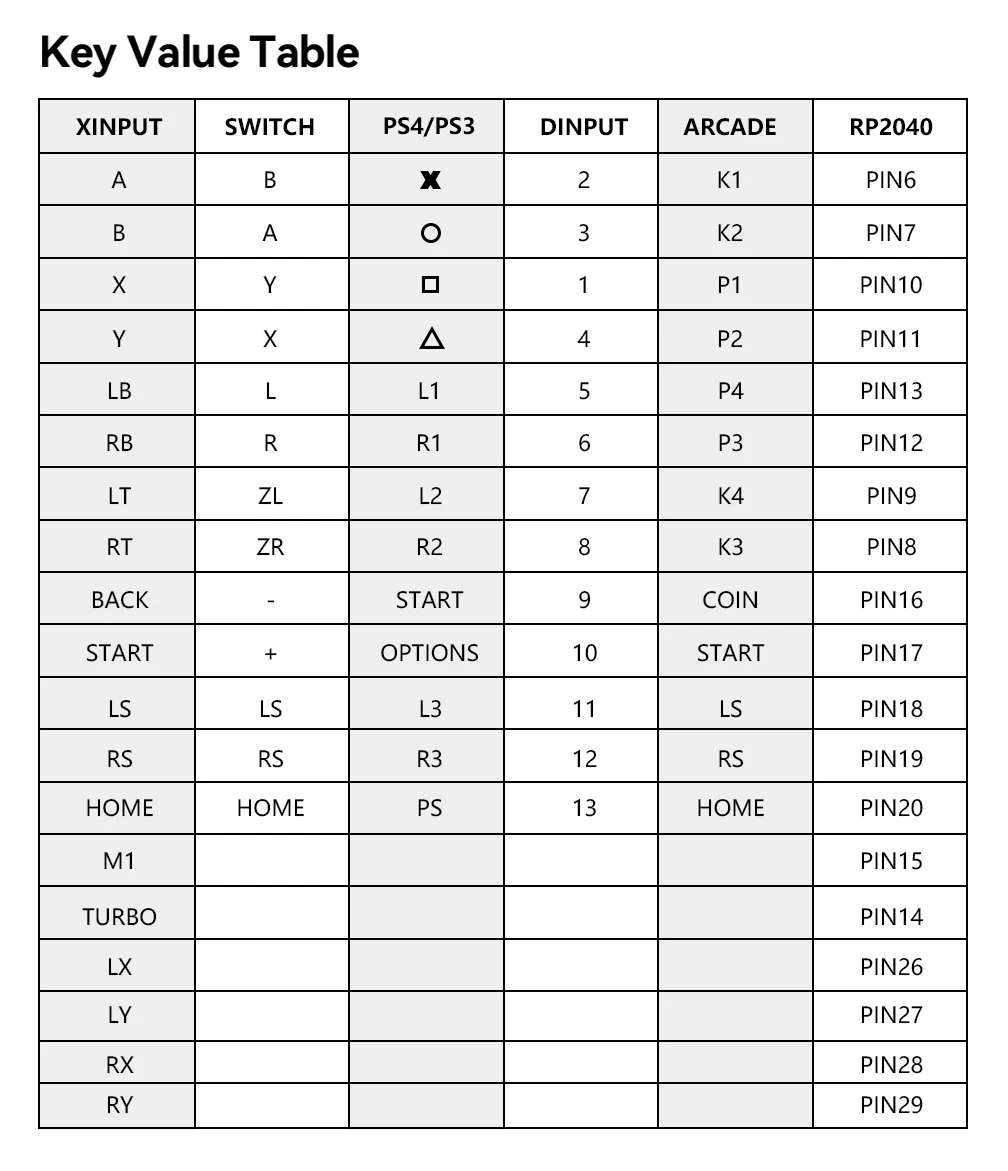

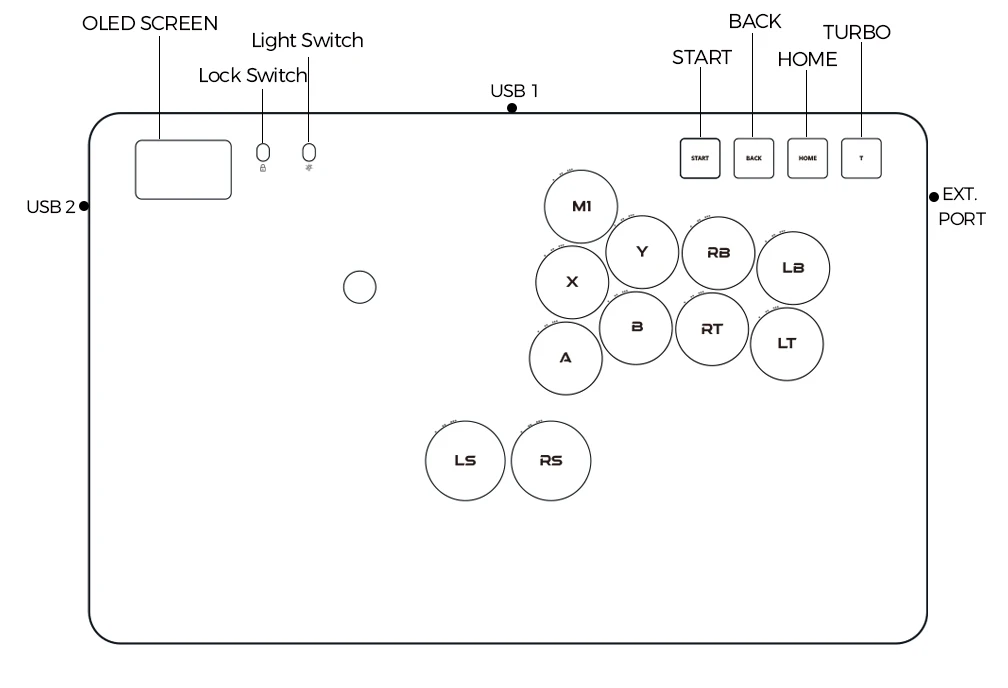

01 Compatibility

B — Xinput mode (Windows/Steam)
A — SWITCH mode
X — PS3 / Dinput mode (Raspberry Pi / Android)
Y — PS4 mode (Compatible with PS4 games on PS5 console）
RT — KEYBOARD mode

Input Mode

To change the input mode, hold one of the buttons(as shown above) as the controller is plugged in.

Tips：

This product defaults to Xinput mode，Input mode is saved across power cycles.

If there are games that do not compatible the above input modes , you can enter the Web Configurator to modify them for normal use.

PS4 /PS5 /XBOX Mode

Not supporting direct connection
About PS4 /PS5 Xbox 8 minute disconnection，there are two ways， one is insert a dongle or a officially authorized PS4 wired controller to the EXT.port，We don't have a recommend one，there are too many choices，maybe you can add our discord with other nice players in haute42 group，Oficial Website：haute42-cosmox.com

Web Configurator

This product contains a built-in web-based configuration application which can be started up by holding START when plugging your controller into a PC. Then access http://192.168.7.1 in a web browser to begin configuration.

TURBO

Hold TURBO，then press the button which you need to be set for turbo function，then this button will be continuous sending while you press it,to cancel this turbo key，just repeat the privious step.

The turbo key that set will be cleard when power off.

These keys can be set as a Turbo key: A / B / X / Y / LB / RB / LT / RT

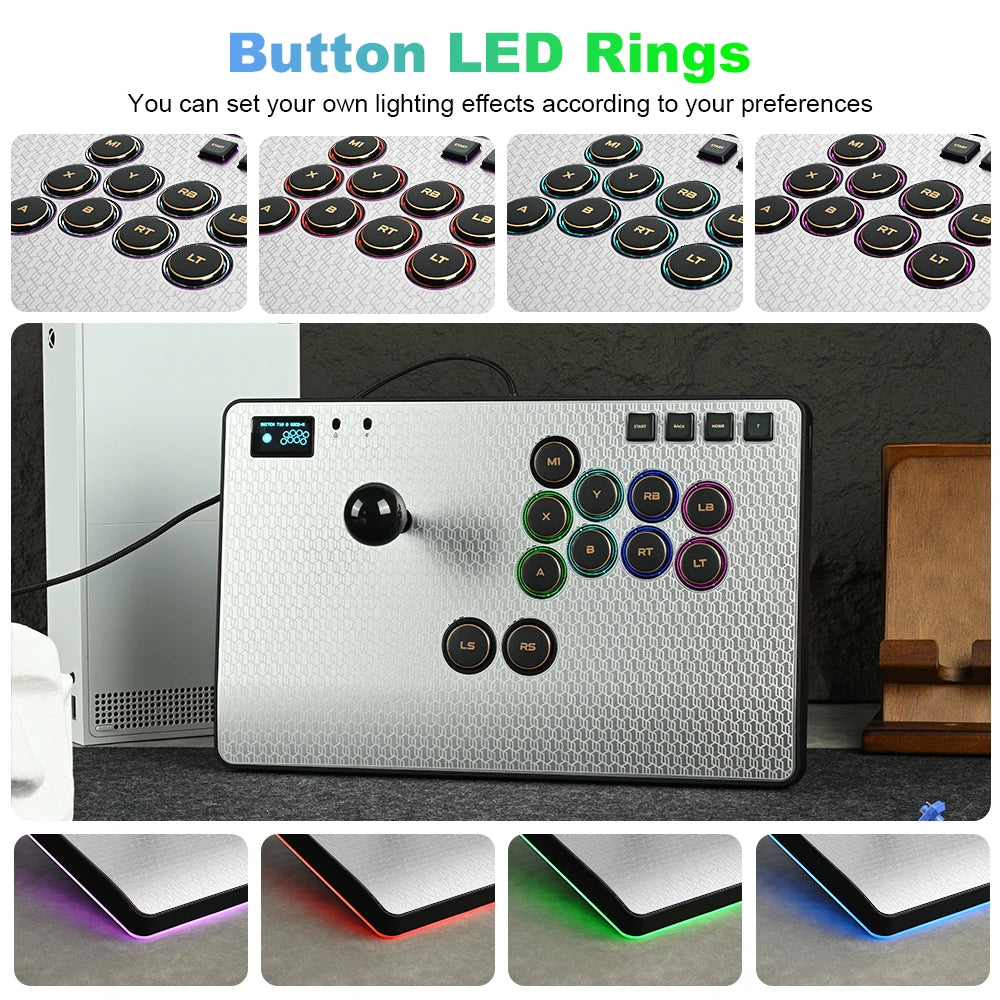

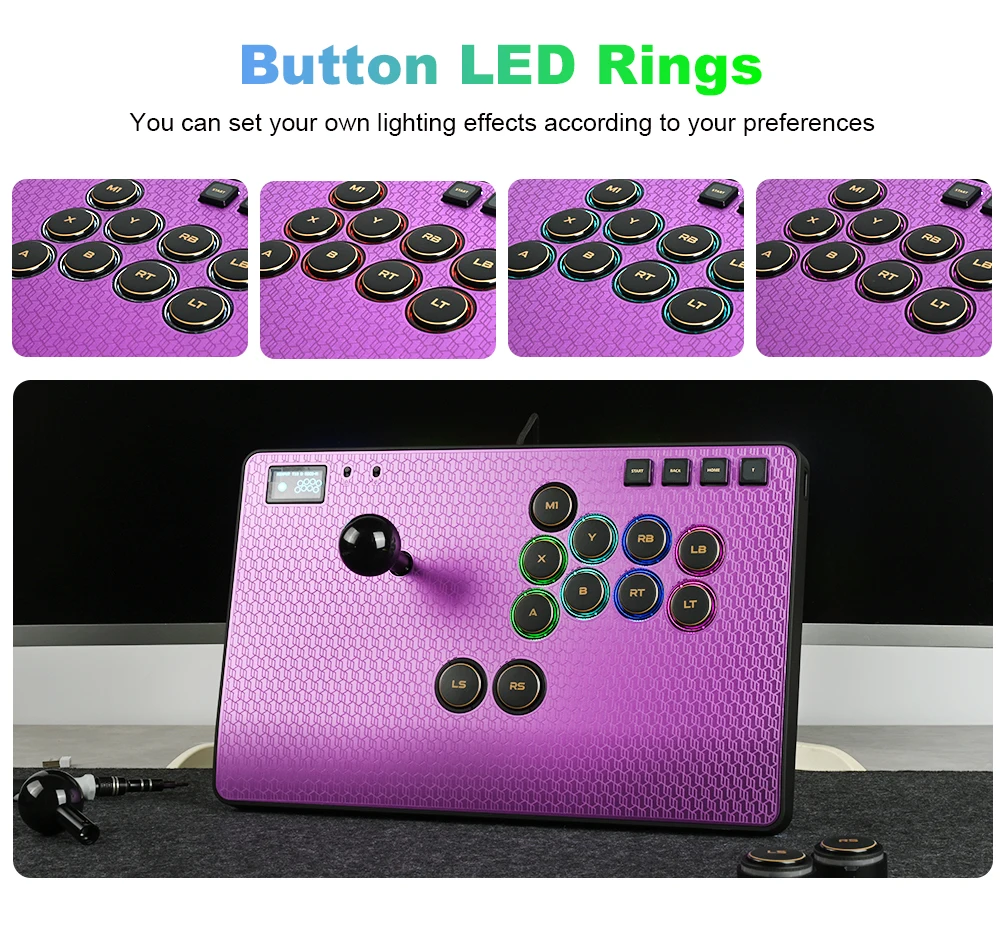

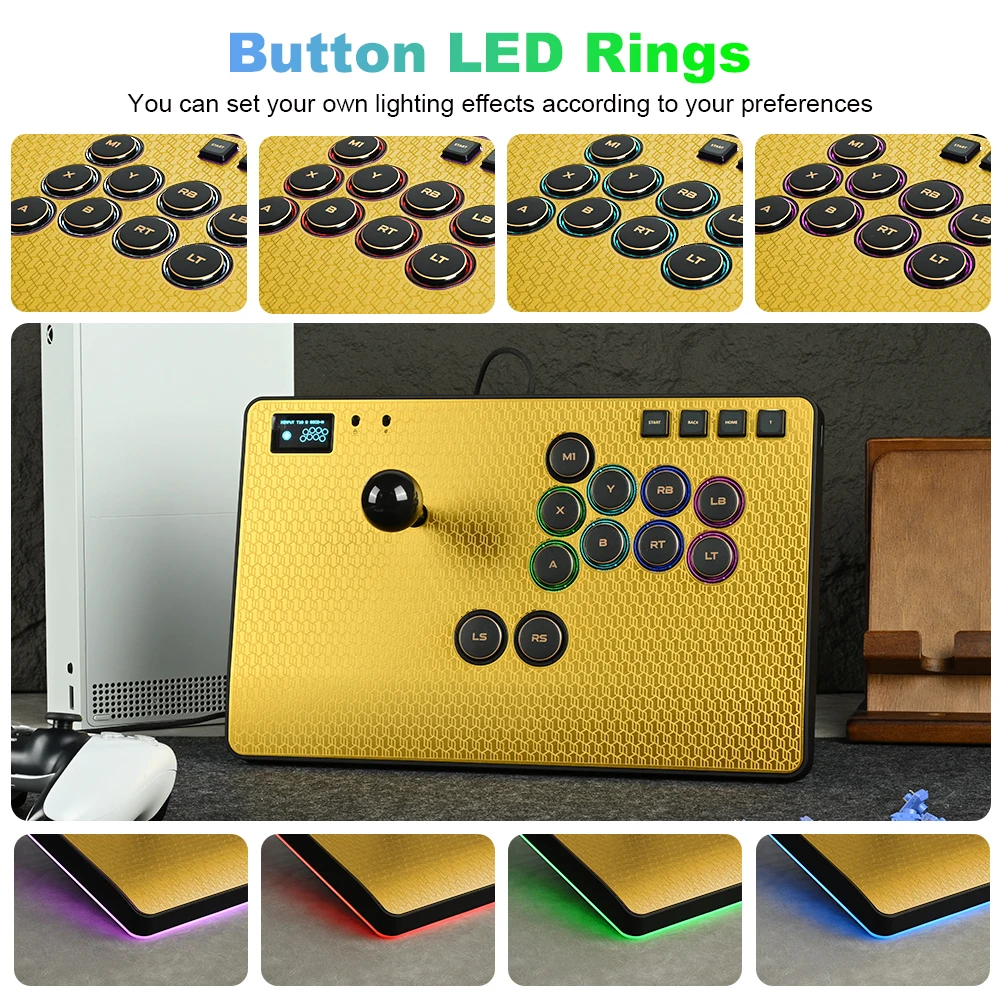

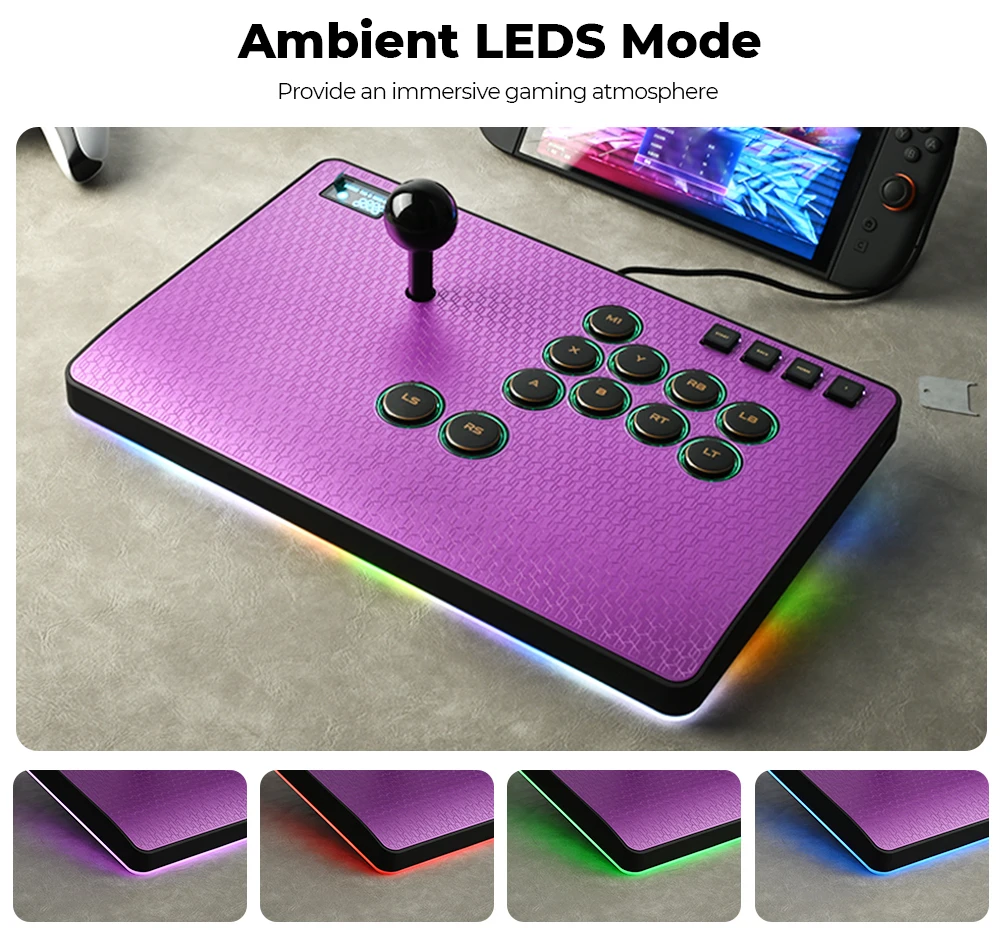

04 RGB LED Setting

●BACK + START + X Next Animation
●BACK + START + A Previous Animation
●BACK + START + Y Brightness Up
●BACK + START + B Brightness Down
●BACK + START + RB LED Parameter Up
●BACK + START + RT LED Parameter Down
●BACK + START + LB Pressed Parameter Up
●BACK + START + LT Pressed Parameter Down
